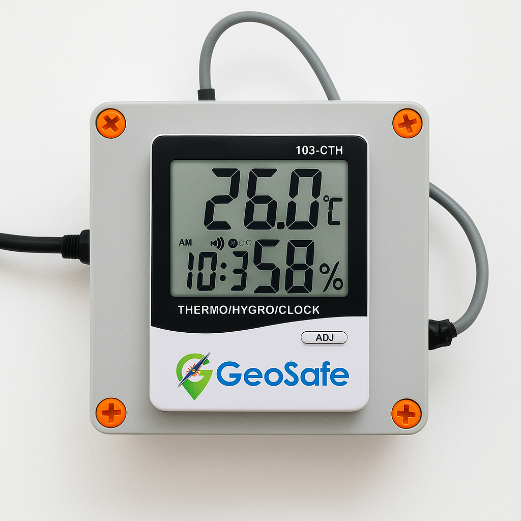

Real-Time Temperature Monitoring System
This system provides instant alerts for any deviations, allowing you to take corrective actions and avoid costly damages. Integrated with cloud-based platforms, this temperature monitoring solution delivers detailed reports, historical data, and real-time updates to ensure your assets are safeguarded.
Discover what you can achieve:
- Accurate Temperature Sensing
- GPS Location Tracking
- 4G with Jio Sim for Better connectivity
- Instant Alerts and Notifications
- Data Logging and History
- Easy Installation
- The device has large inbuilt memory, storing up to 3-4 days of offline data.
Features of Real-Time Temperature Monitoring System
- 4G Connectivity with Jio SIM
- Providing real-time temperature monitoring and GPS tracking to ensure optimal conditions throughout the cold chain
- Temperature monitoring with Integrated GPS tracking
- Advanced Live Tracking
- 2-month data Backup
- Instant Alerts
- Historical Data Logging
- Battery Backup
- Wide Temperature Range Support
- Built-in flash memory
- Power cut Alarm
Use-case
- Cold Chain Logistics Management
- Data Logging for Quality Assurance in Food products and Chemical industries
- Cold Storage Warehousing
- Dairy Product Delivery
- Ice Cream and Frozen Dessert Delivery
Technical Specification
| Type Of Modem | Multi Band GPRS Modem + LTE support |
| Multi Band GPRS Modem Frequency(MHz) | 800-900 MHz, 1800 MHz, 2300MHz |
| Maximum Data rate | 24.1 Mbps (LTE-4G) |
| GPS Receiver type | GPS, GLONASS and BIDOU, SBAS |
| Acquisition Channels (Minimum) | 66 |
| Horizontal Position Accuracy (meter) | 3 |
| Hot Start Time | < 1 SEC |
| Cold Start | 45 SEC |
| Data Backup for GPRS Dark Zones (Minimum) | 40000 samples |
| Distance and Time-Based Hitting | yes |
| Cell tower location information for GPS Dark Zone | Optional |
| Size | 8.5 cm x 7.4 cm x 2.2 cm in size |
| Input Voltage Range | 9 to 55volt DC |
| SMPS Including | Yes (In cold storage Application) |
| Input Current Max | 200mA |
| Digital Input | 2 |
| Analog Input | 1 |
| Power Sense | Yes |
| Battery Backup | Yes |
| Wire Harnes | 6 wire connection |
| SOS support | No |
| Temperature sensor Integration | yes |
| Temperature sensor Included | yes |
| Temperature Measure Range | 30 to +150(Celsius) |
| Chipset | ASR Chipset |
| Availability of SIM | yes |
| Built-in Storage | 128Mb |
| Antenna for GPS Receiver and GPRS Modem both | INTERNAL |
| Active Current | 60mA |
| Idea Current | 12mA |
| Sleep current | <1mA |
| Input Voltage Range | 9 to 55volt DC |
| Automotive Electronics Council (AEC) - Q100 qualified GPS Chip | YES |
| GPS Manufactured in ISO/TS 16750 Certified Sites | YES |
| ISO-9001 | YES |
| MeitY Approved Cloud | YES |
