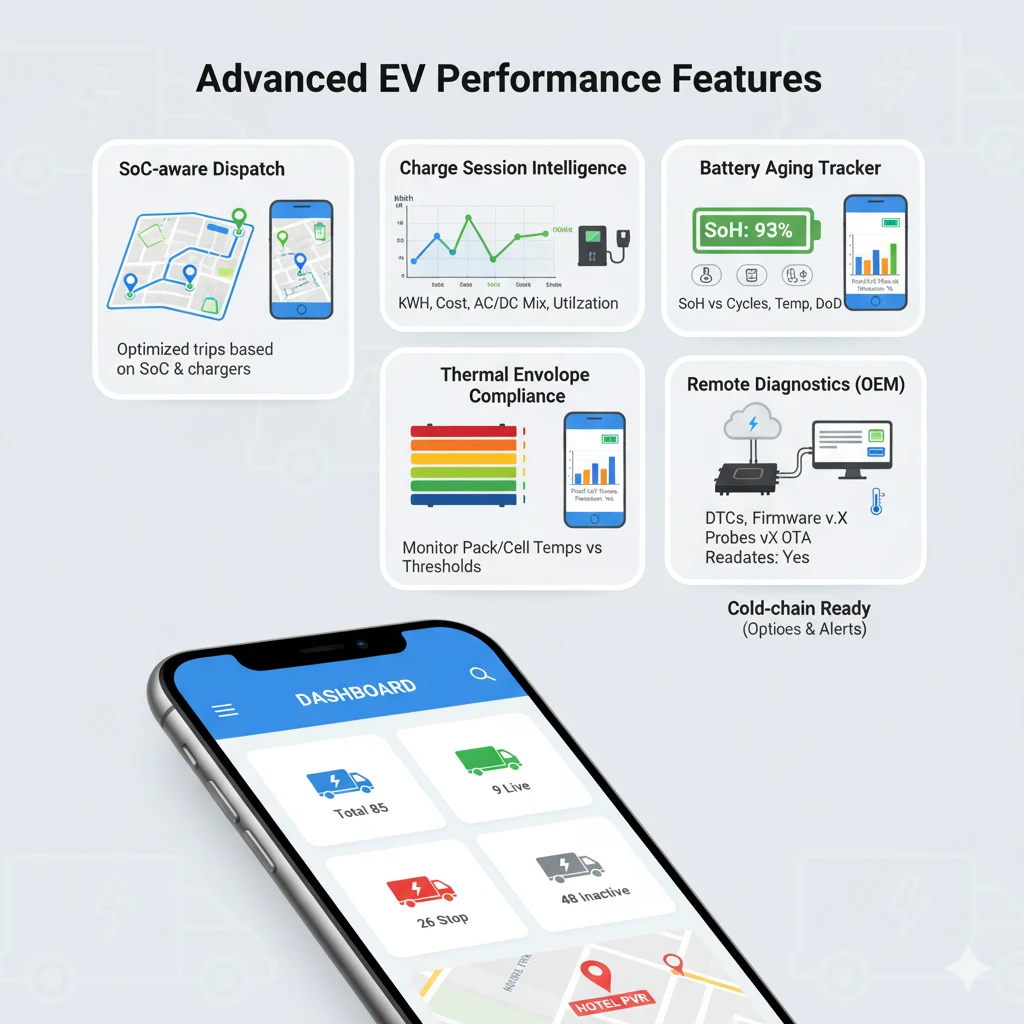

Features of Our EV Vehicle Monitoring System
- SoC-aware dispatch
- Battery aging tracker
- Charge session intelligence
- Thermal envelope compliance
- Remote diagnostics (OEM mode)
- Cold-chain ready
Use-case Of EV Vehicle Tracker
- Live tracking & trip replay
- Battery & BMS analytics
- Smart charging & routing
- Energy efficiency
- Safety & protection
- Driver eco-scores
- Operations console
- APIs & integrations
Technical Specification for EV Vehicle GPS Tracker
| Type Of Modem | Band GPRS Modem + LTE support |
| Multi Band GPRS Modem Frequency(MHz) | 800-900 MHz, 1800 MHz, 1900MHz |
| Maximum Data rate | 237 Kbps |
| GPS Receiver type | GPS, GLONASS and IRNSS-GAGAN |
| Horizontal Position Accuracy (meter) | 2.5 |
| Hot Start Time | < 1SEC |
| Cold Start | 45sec |
| Data Backup for GPRS Dark Zones (Minimum) | 40000 samples |
| Distance and Time-Based Hitting | yes |
| Cell tower location information for GPS Dark Zone | Optional |
| Cellular | 4G LTE with 2G fallback (regional variants) |
| GNSS | GPS + GLONASS + Galileo + BeiDou |
| Interfaces | CAN/OBD-II, RS-485/TTL, digital inputs (ignition/doors), analog input, 1-Wire for temp probes, BLE (select models) |
| Sensors | 3-axis accelerometer/gyro for motion, shock, and towing |
| Power | Wide input for EV platforms (typ. 9–90 VDC), ultra-low-power sleep |
| Backup battery | Built-in for tamper/parked alerts and store-and-forward |
| Enclosure | IP66/67, automotive-grade connectors, compact mount options |
| Security | TLS, signed firmware, device authentication |
| Automotive Electronics Council (AEC) - Q100 qualified GPS Chip | YES |
| GPS Manufactured in ISO/TS 16750 Certified Sites | YES |
| ISO-9001 | YES |
| MeitY Approved Cloud | YES |
| AIS-140 | YES |
| Arai Certificate | YES |
| Size | 110 mm x 74 cm x 27 mm in size |
| Input Voltage Range | 9 to 100volt DC |
| Input Current Max | 200mA |
| Digital Input | 6 |
| Analog Input | 1 |
| RS232 | YES |
| Power Sense | Yes |
| Battery Backup | Yes |
| SOS support | Yes |
| OBD Connector | Yes |
Customer Reviews
Ratings Summary
5
★
4 Ratings & 4 Reviews
What People Say
We manage a fleet of electric cargo bikes for last-mile delivery. The EV GPS Tracking Device is the only one that integrates real-time battery health and charge cycle data. This allows us to predict when a bike will run out of power and automatically route it to the nearest charging station, preventing dead batteries mid-shift. It's vital for optimizing vehicle range and efficient electric vehicle management.
27 Oct 2025
Managing our new fleet of e-scooters and electric delivery vans required more than just location tracking. The EV GPS Tracking Device provides crucial battery drain and health statistics, allowing us to implement smart charging schedules and optimize our range. This has reduced 'dead-vehicle' recovery costs and significantly extended the lifespan of our expensive EV batteries, ensuring highly efficient electric fleet management.
27 Oct 2025
We recently switched our courier fleet to electric vans and needed something that could track both route and battery health. This EV GPS tracker gives me all of it — charging status, live location, and trip efficiency. It’s built specifically for EVs, and that makes all the difference.
27 Oct 2025
I installed the GeoSafe EV GPS tracker and now I can see my battery status live—SoC %, charging/discharging rate, and temperature—right on the app. Alerts for low SoC and charge completion are spot on, and trip history helps me plan smarter routes. Easy setup, reliable data, and real peace of mind.
09 Oct 2025
